Odcl_GetDWGsummary
(From ODCL_LM file)
<< Click to Display Table of Contents >> Odcl_GetDWGsummary (From ODCL_LM file) |
|

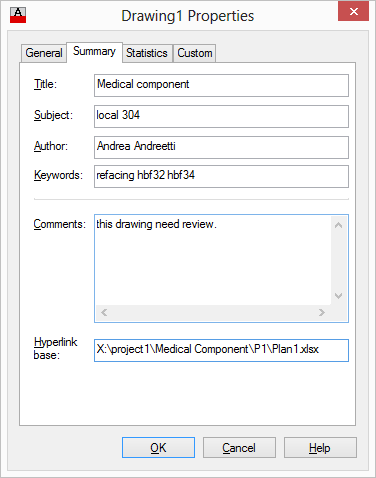

Odcl_GetDWGsummary This function retreive the summary data of the current Drawing Properties. |
Return Values Dwgprops of: "Title" "Author" "Subject" "Keyword" "comments" "Hyperlinks" "LastSavedBy"
Result: (("Title" . "Medical component") ("Author" . "Andrea Andreetti") ("Subject" . "local 304") ("Keyword" . "refacing hbf32 hbf34") ("commenes" . "this drawing need review.") ("Hyperlinks" . "X:\\project1\\Medical Component\\P1\\Plan1.xlsx") ("LastSavedBy" . "Andrea"))
AutoLisp Syxtax: (Setq rualue (Odcl_GetDWGsummary))
|
